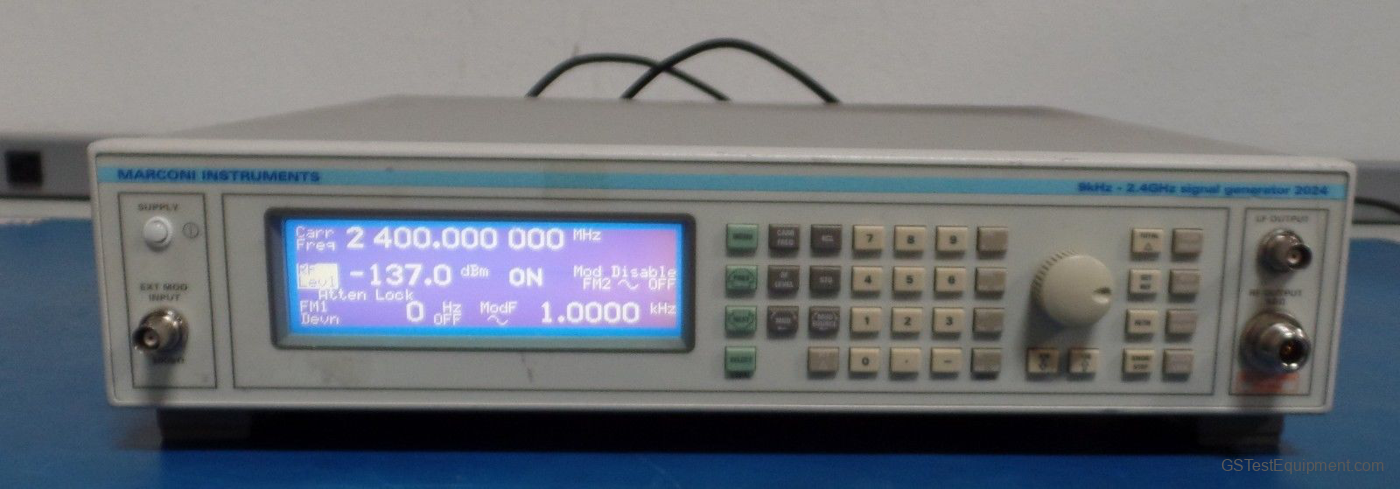

Aeroflex 2024-104 Overview

The Marconi 2024 is a portable and lightweight Synthesized Signal Generator with a frequency range of 9 kHz to 2.4 GHz with a resolution of 1 Hz across the band and a RF output up to +13 dBm with a resolution of 0.1dB. The RF output of the 2024 can be amplitude, frequency, phase or pulse modulated.

The instrument is suitable for wide range of applications in laboratory, protection service and maintenance environments. The GPIB facility allows the unit to be included in ATE systems for faster manufacturing throughput. The inclusion of an RS232 interface, with a common command set to the GPIB facility simplifies remote control of the signal generator in basic test systems and allows control via a modem.

Features:

• 9 kHz to 2.4 GHz
• 1 Hz resolution
• -140 to +13 dBm, 0.1 dB resolution
• AM, FM, Phase, Pulse, FSK Modulation
• 3.9 kHz Bessel filtered FSK
• Sine, triangular and square two-tone modulation source
• Log and Linear Sweep
• Reverse power protected to 50 W
• GPIB and RS-232
