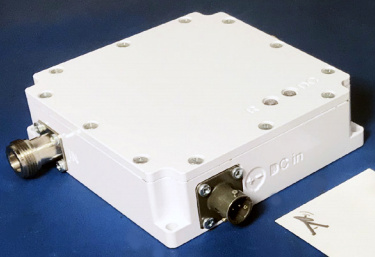

Indoor/Outdoor LED Equipped Highly Stable Auto Sensing and Detecting 10MHz Reference Bias Tee for BUC or LNB
-
Do you have a AMBT-05R you want to sell?
We buy used equipment!
Learn about selling - Only need this item for a short time? Learn about renting
Amkom Design AMBT-05R Overview
Features:
- Super Compact, Robust & Mountable
- IFL Powered or External 12 - 60VDC up to 5A
- 10MHz Ref. AUTO SENSE & DETECT
- Pass - through DC, IF (L-Band), FSK, Int./Ext. Ref
- LED DC Power & Internal Reference Indicators
- Hermetically Sealed & IP 67 Rated
- Internal Polarity Protection
- Low Insertion and Return Loss
- Built - in DC filters
- 3 Year Warranty
Design Overview:
We put our in-house brilliant minded engineers to design and perfect the Universal Indoor & Outdoor Bias T with a Built-in Auto Sensing and Detecting internal Highly Stable 10MHz Reference, which not only sustains its precision performance with its ability to work in the harshest environmental conditions with BUCs and LNBs, and it can also reliably be used for many years requiring virtually no maintenance. Hundreds of these units are used across the globe in various SATCOM applications such as Ground Station, Airborne, Marine, Mobile and Manpack type terminals.
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
IF Input Signals Pass through - IF (L-Band), FSK, and 10MHz Ref. Internal/External
IF Frequency Input - 950 to 2150 MHz
FSK Frequency Input - 550 - 750 kHz
External Auxilary DC Input Range - 12 to 60 Vdc, up to 5A
DC Input Connector - 2 Pin, Pin A (+) | Pin B (- )
Reference Input - 10 MHz (Internal/External)
Low Insertion Loss IF - 0.8 dB max over temp
Low Insertion Loss FSK - 1.5 dB max over temp
Low Insertion Loss 10MHz - 0.8 dB max over temp
Coax Input / Output Connector - N-type / N-type
Operating | Storage Temperature - 40 to + 60 °C | - 60 to + 85 °C
Relative Humidity - 100% non-condensing
Weatherproof Rating - Compliant with IP 67
Dimensions (Connectors) - 4” x 4” x 1.2” inches (101.2 mm x 103 mm x 30 mm)
Weight - 1.0lbs (450 g)
Amkom Design AMBT-05R Options
Internal 10MHz Ref. Spec.
Stability ±1 x 10–8 maximum over temp.
Aging ±1 x 10–8/year maximum
Phase noise (SSB)
100 Hz / -140 dBc / Hz (max.)
1 kHz / -150 dBc / Hz (max.)
10 kHz / -155 dBc / Hz (max.)
100 kHz / -165 dBc / Hz (max.)
100 kHz / -165 dBc / Hz (max.)
10MHz Output Level 5dBm ±2 dBm
Warm-Up Time at 25° C <2 min
Total Power Consumption 3W Max
10Mhz Reference Auto Sense & Detect Function:
If 10Mhz Reference on the input is absent or below
-5dBm the internal 10MHz reference will be applied on
the output and the LED will light up yellow. DC input LED
will be lit Green.
