- Anritsu 37225A-2-3-10-11
Vector Network Analyzer, 40 MHz to 13.5 GHz
-
Do you have a 37225A-2-3-10-11 you want to sell?
We buy used equipment!
Learn about selling - Only need this item for a short time? Learn about renting

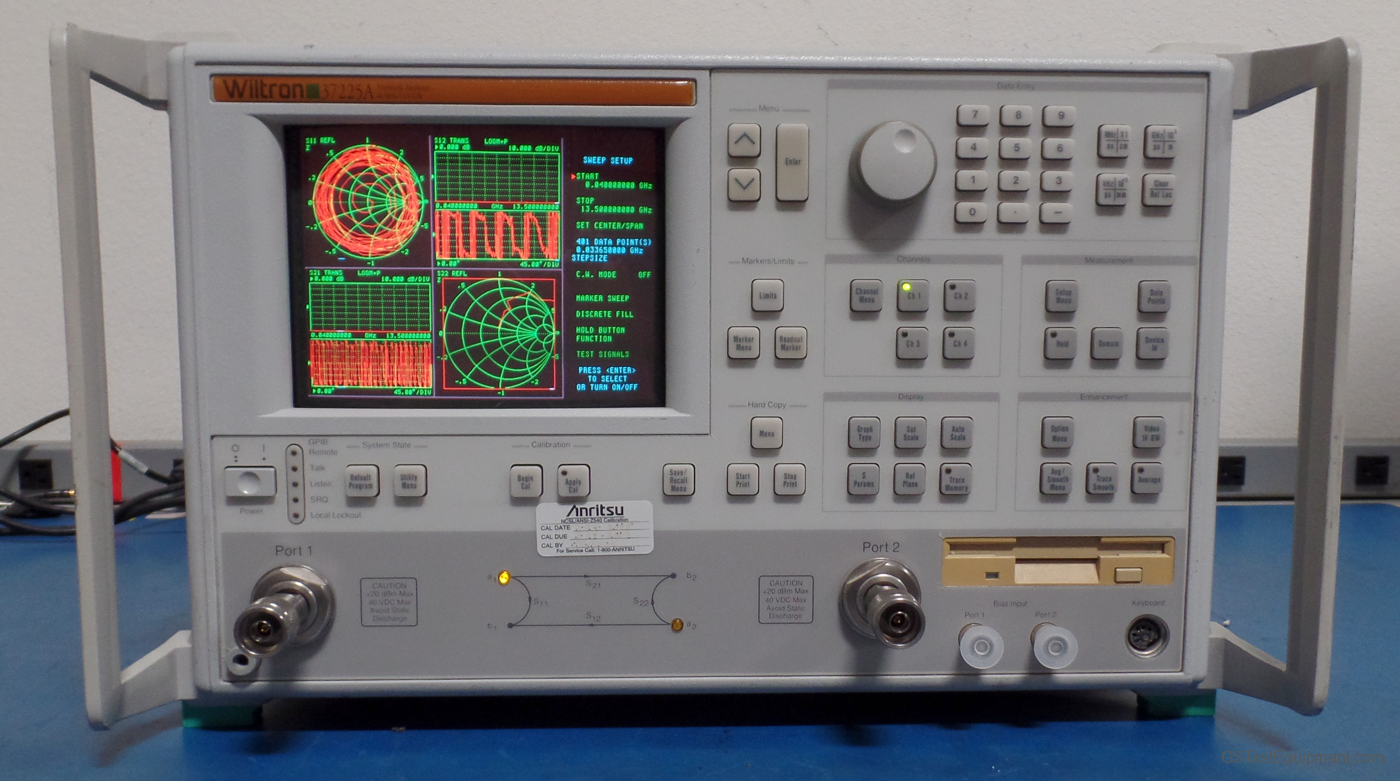

Anritsu 37225A-2-3-10-11 Overview
The Anrtisu / Wiltron 37225a microwave vector network analyzer is a high performance tool used to make fast and accurate s parameter measurements across the 22mHz to 13.3GHz bands. the 37225a uses a integrated fast sweeping synthesized source, auto reversing s parameter test set and 4 channel receiver. built in mass storage via hard drive and internal 3.5” ms-dos floppy drive are standard. 7.5” color display with user definable trace, text and graticule colors. supports multiple formats, log magnitude, phase, log magnitude and phase, smith chart ( impedance & admittance ) , log polar group delay, linear magnitude, linear magnitude and phase, real, imaginary, realy and imaginary and swr. 1601 data points maximum. six independent markders, limit lines. full gpib control and labview compatible.
Anritsu 37225A-2-3-10-11 Options
2 Time (Distance) Domain
3 1 HZ Frequency Resolution
10 Ovenized Timebase
11 Reference Loop Extension Cables
