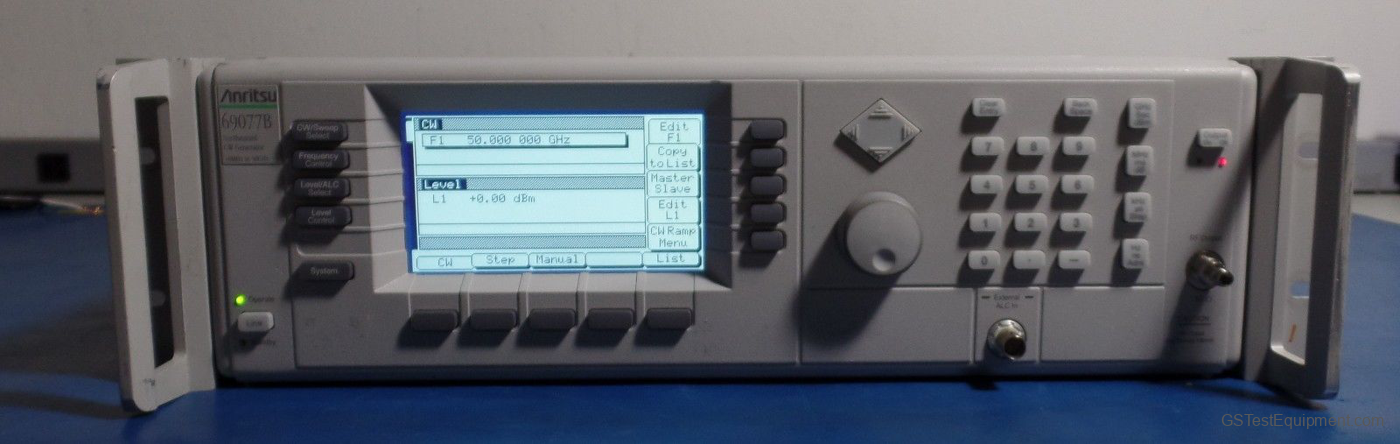

Anritsu Wiltron 68369B Synthesized Sweep Signal Generator, 10 MHz - 40 GHz
-
Do you have a 68369B you want to sell?
We buy used equipment!
Learn about selling - Only need this item for a short time? Learn about renting
Anritsu 68369B Overview
The 69000A/68000B Synthesized CW Generators feature 10 MHz to 65 GHz frequency coverage, CW or step sweep, low SSB phase noise and spurious signals, output levels to +17 dBm, and optional 0.1 Hz resolution. The features combine to make these sources ideal for local oscillator replacement applications. To meet requirements that expand over time, economical upgrades are available to any higher performing model. For the most demanding CW requirements, the 69000A and 68000B provide the ultimate in performance. Ultra-low SSB phase noise; 100 dBc at 10 kHz offset from 10 GHz Models from 0.01 to 65 GHz frequency coverage in a single coaxial output Waveguide extensions to 110 GHz Economical upgrades +17 dBm maximum power, 125 dBm minimum power Internal AM, FM, øM, pulse modulation User down-loaded complex modulation
Anritsu 68369B Options
2B - 110 dB Step Attenuator. Adds a 10 dB per step attenuator with a 110 dB range for models having a high-end frequency of 40 GHz. Output power is selected directly in dBm on the front panel (or via GPIB). Rated output power is reduced
11 - 0.1 Hz Frequency Resolution. Provides frequency
11 - 0.1 Hz Frequency Resolution. Provides frequency
resolution of 0.1 Hz.
