Anritsu 69347B-1-2A-9K-15B-21B Overview

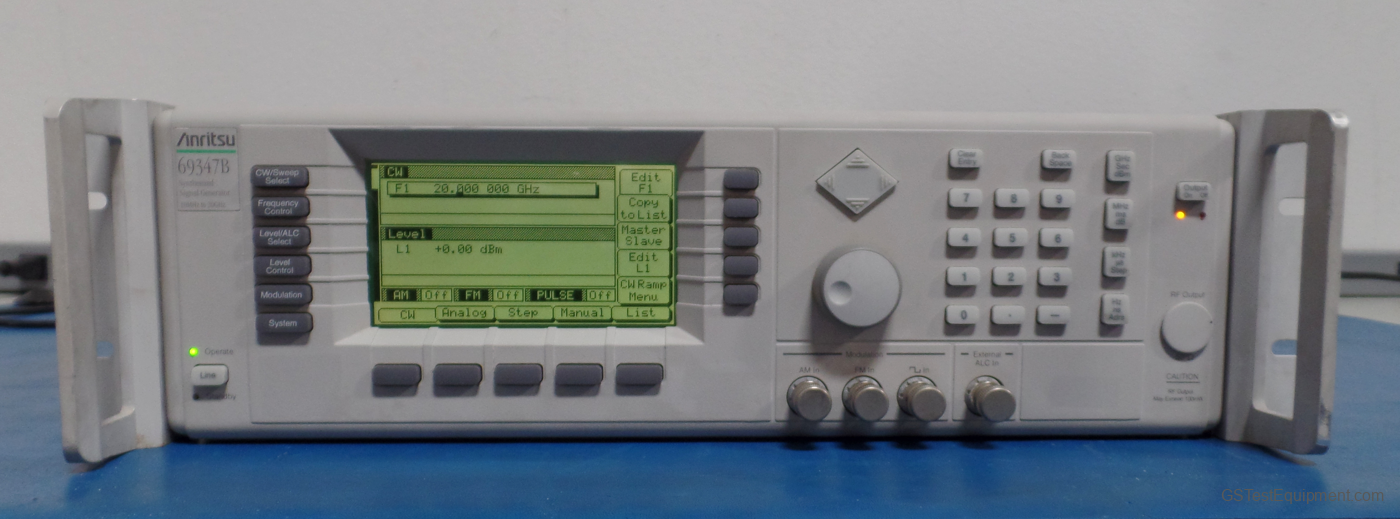

Anritsu 69347B Ultra Low Noise Synthesized High Performance Signal Generator, 10 MHz to 20 GHz. The Anritsu 68C/69B series are your best choice for A.T.E. applications. They pack the highest performance available in a single 13.3 cm package to minimize rack space. High output power assures adequate signal strength to the device under test even after A.T.E. switching and cabling losses.

Includes The following Options:

• 01 Rackmount
• 2A 110 dB Step Attenuator. Adds a 10 dB per step attenuator with a 110 dB range for models having a high-end frequency of
  20 GHz. Output power is selected directly in dBm on the front panel (or via GPIB). Rated output power is reduced.
• 9K Rear panel RF output - Moves the RF output connector to the rear panel.
• 15B  High power output - Adds high-power RF components to the instrument providing increased RF output power in the 2–20 GHz frequency range. Option 15B is standard in models having a high-end frequency that is >40 GHz.
• 21B Digital down converter. Replaces the standard Analog Down Converter (0.01 to 2.0 GHz) with a Digital Down Converter (0.01 to 2.2 GHz).





Anritsu 69347B-1-2A-9K-15B-21B All Available Options
