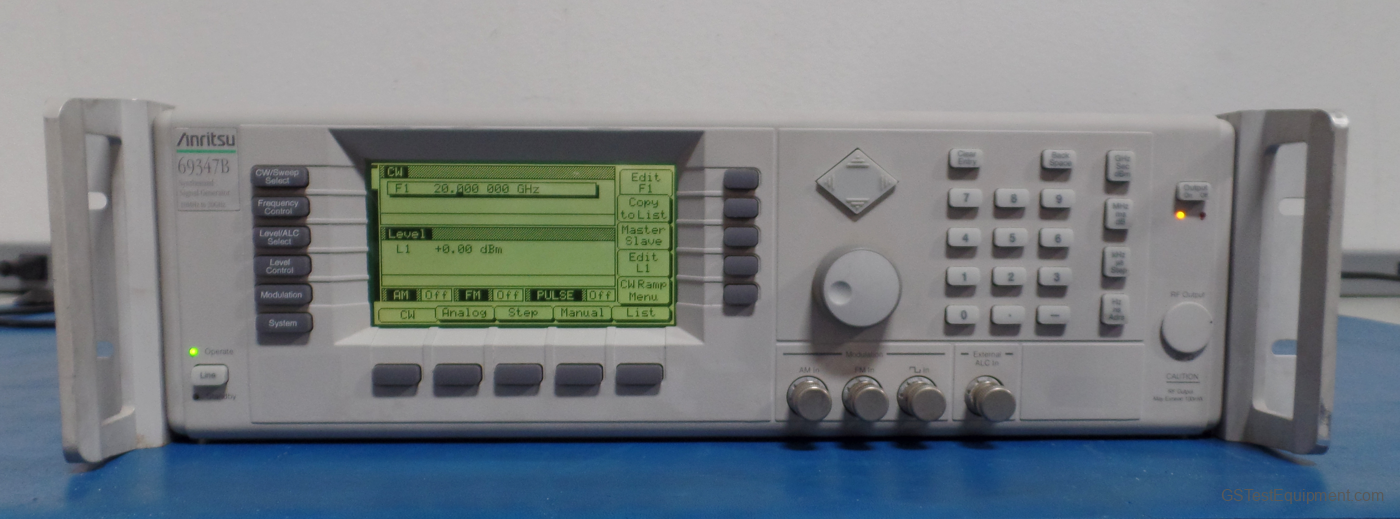

Anritsu 69347B Overview
Anritsu 69347B Ultra Low Noise Synthesized High Performance Signal Generator, 10 MHz to 20 GHz. The Anritsu 68C/69B series are your best choice for A.T.E. applications. They pack the highest performance available in a single 13.3 cm package to minimize rack space. High output power assures adequate signal strength to the device under test even after A.T.E. switching and cabling losses.
Anritsu 69347B All Available Options
| 01 |
Rackmount |
| 07 |
Delete AM/FM Generators (683xxC and 693xxB): Deletes the internal AM and FM generators. External AM and FM capability remains unchanged. (Not available in combination with Option 8 or Option 20.) |
| 11 |
0.1 Hz frequency resolution (provides frequency resolution of 0.1 Hz) |
| 14 |
Rack Mounting without Chassis Slides |
| 15B |
High Power Output. Adds high-power RF components
to the instrument providing increased RF output power in
the 2–20 GHz frequency range. Option 15B is standard in models
having a high-end frequency that is >40 GHz |
| 16 |
HI STABILITY TIMEBASE |
| 19 |
SCPI Programmability: Adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0. SCPI programming complies with IEEE 488.2–1987. |
| 21B |
Digital Down Converter. Replaces the standard
Analog Down Converter (0.01 to 2.0 GHz) with a Digital Down
Converter (0.01 to 2.2 GHz). |
| 2A |
110 dB Step Attenuator. Adds a 10 dB per step attenuator with a 110 dB range for models having a high-end frequency of 20 GHz. Output power is selected directly in dBm on the front panel (or via GPIB). Rated output power is reduced. |
| 6 |
Phase modulation capability FM input and FM generator become FM/øM input and FM/øM generator (69200A, 68200B, 69300A and 68300B series) Not available with option 7 |
| 9K |
Rear Panel RF Output. Moves the RF output connector
to the rear panel. |
