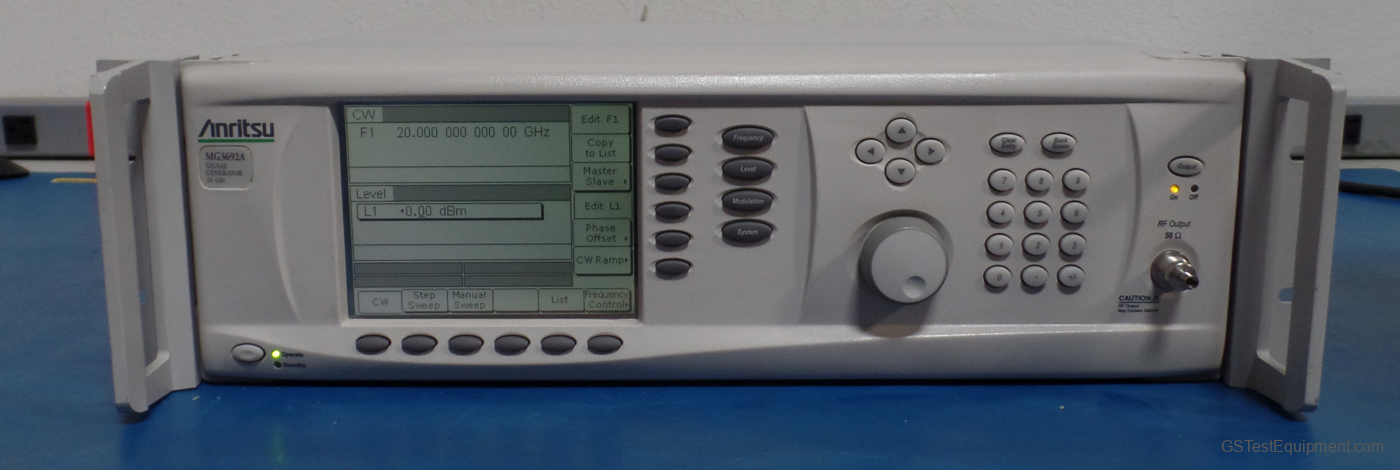

Anritsu MG3692A RF/Microwave Ultra Low Phase Noise Signal Generator 10 MHz-20 GHz
-
Do you have a MG3692A-3-2A-15A you want to sell?
We buy used equipment!
Learn about selling - Only need this item for a short time? Learn about renting
Anritsu MG3692A-3-2A-15A Overview
- Resolution - 0.01 Hz
- Phase Offset - 0.1 dB steps
- RF Frequency Coverage Extension, down to 0.1 Hz - Best solution for dual RF and Microwave applications - An optional down-converter covers 10 MHz to 2 GHz - An optional DDS offers additional coverage to 0.1 Hz!
- Excellent Phase Noise performance as standard - Add optional ultra low phase noise > 2 GHz - Add an optional digital down-converter for: - Lowest Phase Noise RF source from 10 MHz to 2.2 GHz - < 130 dBc/Hz @ 1 GHz, 10 kHz offset ? High Output Power - 13 dBm standard (@ 20 GHz) - 17 dBm optional (@ 20 GHz) - 14 dBm optional (@ 40 GHz)
- Wide Attenuation Range - 110 dB Mechanical Attenuator Option - 120 dB Electronic Attenuator Option
- AM/FM/ØM/PM, External or Internal - 100 ns leveled pulse width >2 GHz, 1 µs <2 GHz
- IF Up-Conversion Option - Obtain IQ-modulation microwave signals by up-converting a modulated IF signal
- Digital or Analog Sweep
Anritsu MG3692A-3-2A-15A Options
3 Ultra Low Noise > 2GHz
2A Mechanical Step Attenuator
15A High Power
