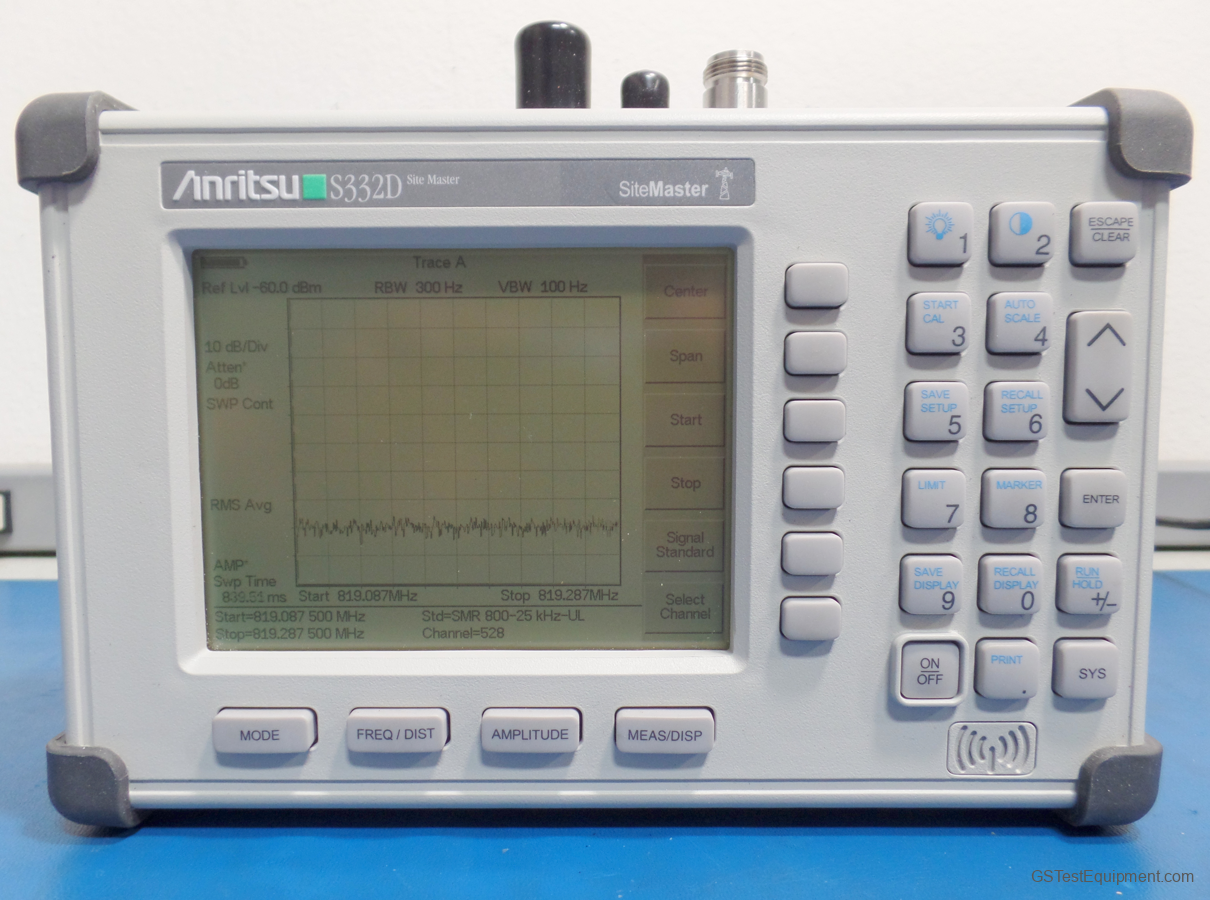

Anritsu S332D Overview

Site Master™ Handheld Cable and Antenna Analyzer Model S332D includes all the features of our popular S331D - PLUS spectrum analysis for extra versatility in a single instrument. The standard cable & antenna analyzer spans from 25 MHz to 4 GHz. Option 2 and Option 16 extend the lower and upper frequency ranges of the cable & antenna analyzer to 2 MHz and 6 GHz respectively. Accurate, versatile, affordable, rugged and a true handheld at under 5 pounds (including battery), Site Master is ideally suited for field technicians involved with installing, provisioning, maintaining, and troubleshooting wireless base station cable and antenna systems for such applications VHF, broadcasting, paging, cellular, PCS/GSM, 3G, ISM, WLAN and WLL.

Features:

• Handheld, battery-operated design
• Weighs less than 5 lbs. (including battery)
• Built-in worldwide signal standards and frequency channels
• Superior Immunity to RF interference
• Locate long range problems with 517 data points
• Pop-up cable menus containing over 95 cable types
• Multilingual User Interface; English, French, Chinese, Japanese, Spanish, German
• Intuitive and easy to use with On-Screen Test Set-Ups
• Saves 15 to 35 Measurement Test Set-Ups (10 VNA, 5 SPA/Opt 21, 5 each Option 19/25/27/29)
• Saves up to 300 Measurement Traces
• Alphanumeric Labeling of Saved Measurements
• Automatic Time and Date Stamp of Saved Data
• Rechargeable, Field Replaceable Battery
• Distance Measurement in Feet and Meters
• Information Screens Provide Cable Attenuation and Velocity of Propagation values 6 Markers, Limit Lines, and Segmented Limit Lines
• RS232 Interface

Applications:

• Cable and antenna testing for VHF, broadcasting, paging, cellular, PCS/GSM, 3G, ISM, WLAN and WLL applications.
• Return Loss measurement
• Distance-To-Fault measurement
• Cable loss measurement Interference Detection and Analysis
• Rapid sweep speed to detect interference
• AM/FM/SSB detection
• Interfering signal type determination helps quickly determine source of cellular interference Base Station Transmitter Performance Testing
• Channel power
• Adjacent Channel Power Ratio
• Occupied Bandwidth
