AC Power Source, 2.5 KVA, 1Ø, 135/270 VAC, 45 - 500 Hz (1 KHz optional)

Model:CW2501M

Manufactured by: Elgar

Category:AC Power Supplies

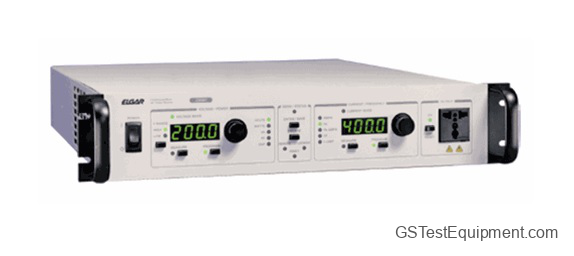

Elgar CW2501M Overview

Features:

  • Three phase operation
    • Easily slaved for 3 phase output
  • High frequency output
    • 45 to 500 Hz standard
    • 45 to 1000 Hz available
  • Wide AC input rang
    • Power factor >.99
    • 180 VAC to 264 VAC on CW 2501
  • Excellent Output stability
    • +/-0.05% of full scale
  • Available Options:
    • Manual:
      • L: Locking Pots
      • S: Sync (standard on CW-Programmable)


    The ContinuousWave (CW) Series of AC power sources provides clean single phase power at an impressive price/performance ratio. These compact switch mode sources come in two series, manual (CW-M) or programmable (CW-P) with standard IEEE-488.2 or RS-232 control. Both series have three power levels, 800 VA, 1250 VA and 2500 VA.

    The 800 and 1250 VA models are 2U (3.5?) high and allow the unit under test to be connected to the front or rear panel. The 2500 VA model is

    Elgar CW2501M All Available Options Expand
