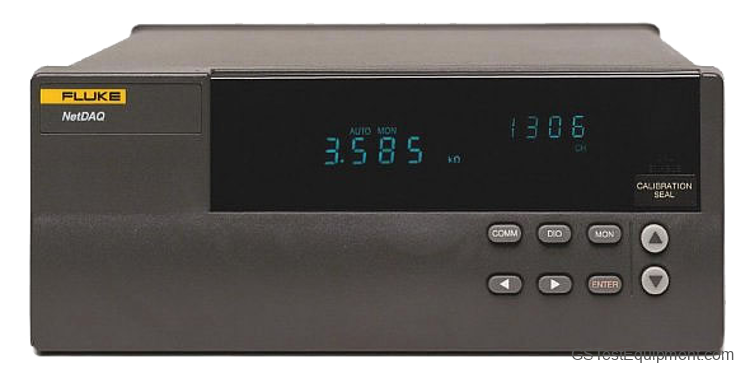

Fluke 2645A Overview

Fluke 2645A Performance Characteristics:

Form Factor: Benchtop

Simultaneous Channels: 20 ch

Number of Bits: 16 bits

Measurement Parameter:

ACC,ACV,DCC,DCV,Frequency,Resistance,RTD,Thermocouple

Sampling Rate: 3000 Sa/s

Minimum Frequency: 15 Hz

Maximum Frequency: 1 MHz

DC Volts Minimum Range: 90 mV

DC Volts Maximum Range: 50 V

DC Volts Minimum Resolution: 3 uV

DC Volts Maximum Resolution: 10 mV

DC Volts Basic 1 yr accuracy: 0.01 %

AC Volts Minimum Range: 300 mV

AC Volts Maximum Range: 50 V

AC Volts Minimum Resolution: 10 uV

AC Volts Maximum Resolution: 1 mV

AC Volts Basic 1 Year Accuracy: 0.3 %

Resistance Minimum Range: 300 Ohm

Resistance Maximum Range: 3 MOhm

Resistance Minimum Resolution: 10 mOhm

Resistance Maximum Resolution: 100 mOhm

Resistance Basic 1 yr accuracy: 0.02 %

Fluke Precision (Fluke) 2645A Measurements/Features:

expandable to 400 channels

18 bit Resolution

totalizer input ch 4mil count

measure 300V at up to 100 rps

*Accuracies for 90 days

No.of Simultaneous Ch:20-400
