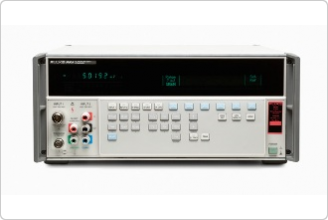

Fluke 5790A Voltage Calibrator
-
Do you have a 5790A you want to sell?
We buy used equipment!
Learn about selling - Only need this item for a short time? Learn about renting
Fluke 5790A Overview
Fluke 5790A AC Measurement Standard
Frequency range: 10Hz - 1MHz; AC voltage range: 70µV - 1000V. Unit also compatible with a 40 current shunts, and a wide band voltage option extends frequency range to 30MHz.
Fluke 5790A/AN OPT 03 Measurements/Features:
The 5790A covers an alternating voltage range of 700 µV to 1000V, and a frequency range of 10Hz to 1 MHz. A wideband voltage option extends frequency range to 30 MHz to meet the calibration requirements of Fluke 5700A, 5720A and 5100 Series Wideband Options.
The 5790A is also compatible with Fluke A40 and A40A Current Shunts, which permit you to make ac/dc current transfer measurements up to 20A.
The 5790A may be used alone or as a transfer standard with an external dc source. In either case the normally tedious switching and calculations are performed automatically by the 5790A, and the resulting ac/dc difference is displayed directly on the easy-to-read vacuum fluorescent display.
Fluke 5790A/AN OPT 03 Performance Characteristics:
- Form Factor: Benchtop
- AC Volts Minimum Range: 700 uV
- AC Volts Maximum Range: 1000 V
- AC Volts No. of Ranges: 13 QTY
- AC Volts Minimum Frequency: 10 Hz
- AC Volts Maximum Frequency: 30 MHz
- AC Volts Basic 1 Year Accuracy: 0.35 %
- Resistance Maximum Range: 91 Ohm
