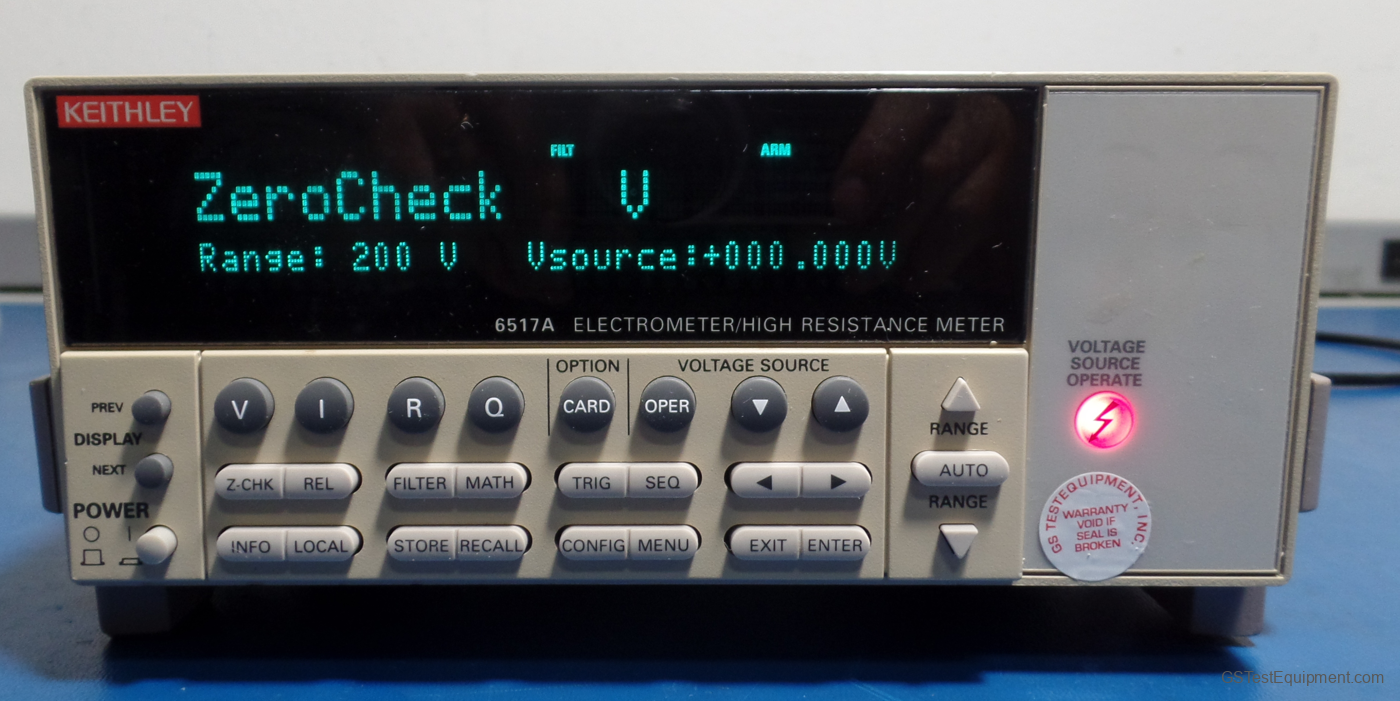

Keithley 5½-digit Model 6517a Electrometer/High Resistance Meter
-
Do you have a 6517a you want to sell?
We buy used equipment!
Learn about selling - Only need this item for a short time? Learn about renting
Model:6517a
Manufactured by: Keithley Instruments
Category:Electrometers / High Resistance Meters / Meggers
Keithley Instruments 6517a Overview
- Measures resistances up to 10e17 Ohms
- 100aA to 20mA current measurement range
- <20µV burden voltage on lowest current ranges
- 200TOhms input impedance
- <2fA bias current
- Up to 125 readings/s
- 0.75fA p-p noise
- Built-in ±1kV voltage source
- Unique voltage reversal method for high resistance measurements
Keithley's 6-1/2-digit Model 6517A Electrometer/High-Resistance Meter is the ultimate tool for performing high-resistance measurements. Its 1fA measurement noise, coupled with its ±1kV voltage source, makes it extremely flexible for many resistance applications. In addition, its unique alternating polarity resistance method enables repeatable measurements, even in circumstances where background currents previously made measurements impossible. It also excels at all electrometer functions. Its exceptional 200Tohms input impedance in voltage measurements, its current measurement range from 1fA to 20mA, and its charge measurements from 10fC to 2µC, make it a very versatile product.
