- Keithley Instruments 7062
RF Switch Card 500MHz
-
Do you have a 7062 you want to sell?
We buy used equipment!
Learn about selling - Only need this item for a short time? Learn about renting

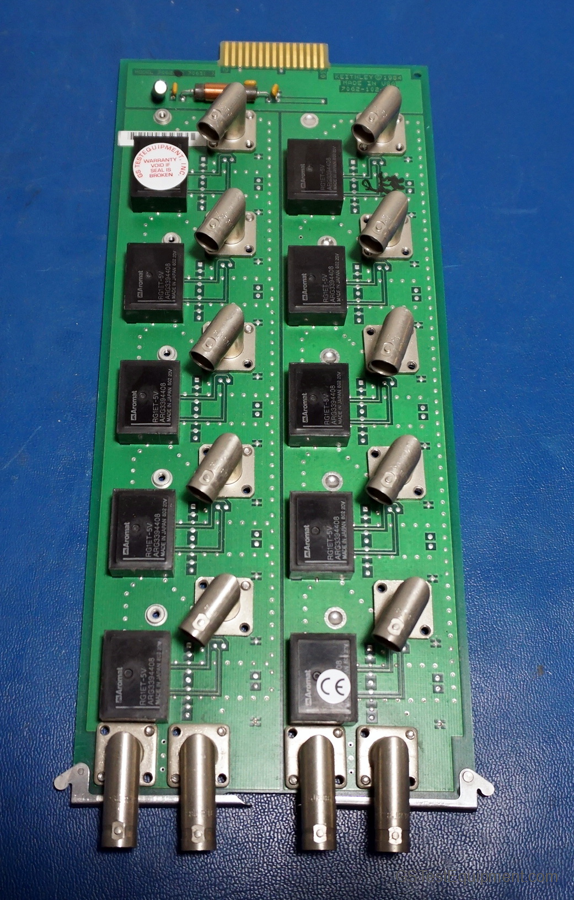

Keithley Instruments 7062 Overview
- 500MHz bandwidth
- BNC connectors
- Two independent 1 of 5 switches
Each switch has a separate through connection that can be used to cascade sections to achieve larger scanning configurations in multiples of five. The switched transmission line design maintains the 5 Ohm characteristic through the switch, minimizing reflection and loss.
This approach results in reduced capacitance and better frequency response. A 500MHz bandwidth assures signal integrity over a broad range from DC to communications signals and digital waveforms. Coaxial switching provides additional shielding and noise immunity in the system environment.
