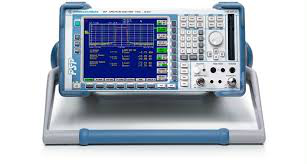

Rohde and Schwarz FSP3 Overview

Rohde & Schwarz, Inc. FSP3 Measurements/Features: FSP is the ideal partner for both development and production, featuring the smallest level measurement uncertainty in its class, as well as excellent RF characteristics. The FSP is outstanding for its innovative measurement functions and incorporates proven technology with an all new hardware design to enable revolutionary performance, reliability and ease of service.

Features:

Frequency range 20Hz to 3GHz, 7 GHz, 13 GHz, 30 GHz and 40 GHz

Resolution bandwidth 1 Hz to 10 MHz

Displayed average noise level -155 dBm (1 Hz)

Phase noise -113 dB (1 Hz) at 10 kHz

Additional filters:

Channel filters from 100 Hz to 5 MHz and RRC filters

FFT filters from 1Hz to 30 kHz

EMI bandwidths and quasi-peak detector

Total measurement uncertainty 0.5 dB

Measurement routines for TOI, ACP(R), OBW, CCDF, APD, etc. as standard

Fast ACP in time domain

Up to 80 measurements per second (including trace transfer via GPIB)

Electronic attenuator

Application firmware available for GSM/EDGE, Bluetooth, WCDMA/HSDPA/TD-

SCDMA, CDMA2000/1xEV-DV/1xEV-DO, WLAN Supplied with: Power cable Operating manual Service manual Test port adapter with 3.5 mm female and N female connector Test port adapter with K female and N female connector
