Model:FSQ8

Manufactured by: Rohde and Schwarz

Category:Spectrum Analyzers

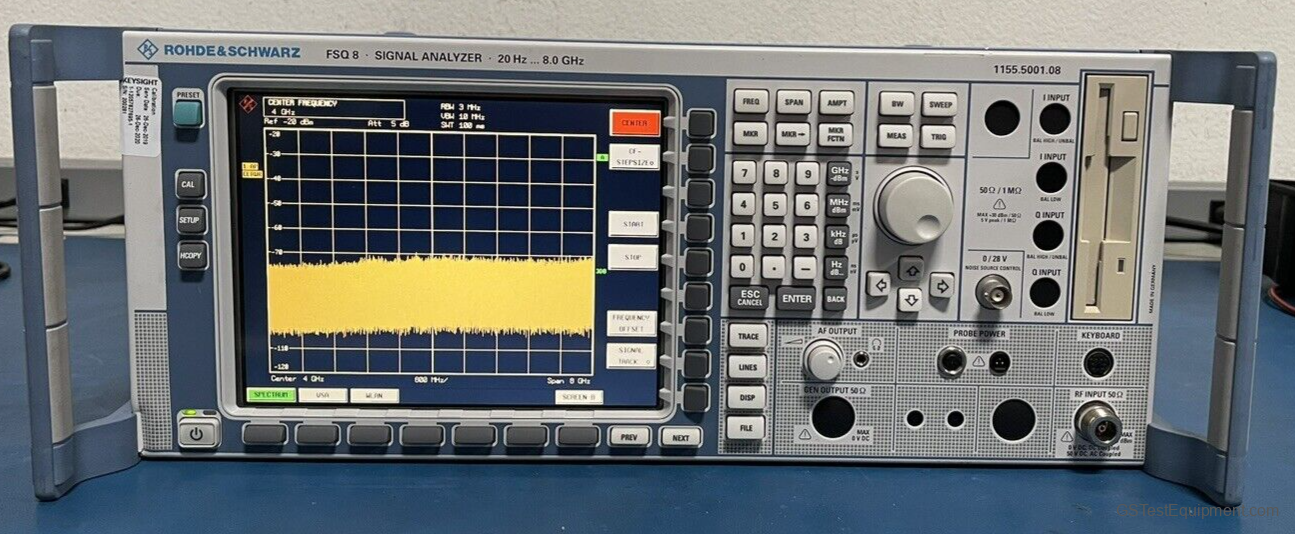

Rohde and Schwarz FSQ8 - Spectrum Analyzers

Rohde and Schwarz FSQ8 Overview

Key Facts The Signal Analyzer R&S FSQ combines two instruments in one. It offers signal analysis at a demodulation bandwidth of up to 120 MHz with the dynamic range of a high-end spectrum analyzer. Features

Frequency range: 20 Hz to 3.6 GHz, 8GHz, 26,5GHz and 40 GHz
Dynamic range of a high-end spectrum analyzer
TOI + 25 dBm, typ.
1 dB compression +13 dBm, typ.
84 dB ACLR/3GPP with noise correction
28 MHz demodulation bandwidth (optional 120 MHz)
16 Msample I and Q memory
Application firmware for digital demodulation measurement
Bluetooth
GSM/EDGE
3 GPP WCDMA, HSDPA, TD-SCDMA
CDMA2000, 1xEV-DV, 1xEV-DO
WLAN 802.11a/b/g/j
WiMax IEEE 802.16-2004,802.16e
General purpose vector signal

Rohde and Schwarz FSQ8 All Available Options

B10	External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of
B100	I/Q memory extension 235 Msamples Extendable up to 705 Msamples (Not retrofittable, excludes FSP-B10)
B102	I/Q memory extension Extends FSQ-B100 to 705 Msamples (FSQ-B100 required)
B12	Output attenuator for tracking generator for FSU, FSQ
B17	Digital Baseband Interface Not retrofittable
B18	Removable Hard Disk (not retrofittable)
B19	Second Hard Disk for FSQ-B18 (for FSQ-B18, variant 1303.0400.03)
B25	Electronic attenuator 0 to 30 dB, Preamplifier 20 dB, 10MHz - 3.6 GHz for FSU, FSQ
B28	Trigger port for FSP,FSQ,FSU; for indication of trigger conditions
B33	USB mass memory write protection, disables writing to USB memory sticks (ex factory only)
B4	OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR
B4	OCXO 10 MHz aging/year: 0.35*10E-7.
B5	Output for low phase noise 640MHz reference signal for FSU3, FSU8, FSQ3 und FSQ8
B512	CPU RAM upgrade to 512 MB for instruments with CPU board 1091.2520
B71	Analogue base band inputs 50 Ohm/1M Ohm input impedance information bandwidth 36 MHz
B72	Bandwidth extension for IQ-Demodulation and Vectorsignalanalysis 120MHz IQ bandwidth.
B88	RF hardware option 1 FSU8/FSQ8
B9	Tracking generator for FSU and FSQ, 100 kHz - 3.6 GHz
C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s).
C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).
DCV-2	Documentation of calibration values
DCV-ZP	Printout of DCV (additional, in combination with DCV-Option only)
DKD	FSQ8 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device)
EX-IQ-BOX	Digital I/O adapter module for AFQ, AMU, FMU, FSG, FSQ, SMJ, SMU (AFQ-B18, AMU-B17, AMU-B18, FSQ-B17,
FS-B33	USB mass memory write protection, disables writing to USB memory sticks (ex factory only)
FS-K10	GSM/EDGE/EDGE Evolution Measurement Appl (for FSG/FSQ/FSU)
FS-K110	Analysis of TETRA II / TEDS signals (for FSQ, FSU with option FSU-B73)
FS-K15	VOR/ILS measurements for FSMR
FS-K30	Application firmware for noise figure and gain measurements for FSMR, FSP, FSQ, FSU
FS-K40	Application firmware for phase noise measurements for FSMR, FSP, FSQ, FSU
FS-K5	Application firmware GSM/EDGE tests for FSP, FSU, FSQ
FS-K5U	Upgrade of FS-K5 to FS-K10, GSM/EDGE/EDGE Evolution Measurement Appl (for FSG, FSQ, FSU)
FS-K7	FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU)
FS-K72	Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP, FSU, FSQ
FS-K73	Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP, FSU, FSQ
FS-K73+	3GPP HSPA+ UE transmitter test, application firmware (for FSMR, FSP, FSQ, FSU, FSUP,
FS-K74	3GPP HSDPA base station test application firmware for FSMR, FSU, FSP, FSQ
FS-K74+	3GPP HSPA plus, base station test. Application firmware (for FSP, FSQ, FSU, FSG;
FS-K76	3GPP TD-SCDMA base station test; application firmware for FSMR, FSP, FSQ, FSU
FS-K77	3GPP TD-SCDMA mobile station test; application firmware for FSMR, FSP, FSQ, FSU
FS-K8	Application firmware for Bluetooth measurement on FSP, FSU and FSQ
FS-K82	CDMA2000/1xEV-DV base station test application firmware for FSMR, FSP, FSU, FSQ
FS-K83	CDMA2000/1xEV-DV mobile station application firmware for FSMR, FSP, FSQ, FSU
FS-K84	1xEV-DO base station test application firmware for FSMR, FSU, FSP, FSQ
FS-K85	1xEV-DO mobile station test application firmware for FSMR, FSP, FSQ, FSU
FS-K9	Measurements with NRP power sensors NRPZ11/Z21/Z22/Z23/Z24/Z51/Z55/Z91 requires NRP-Z3 or NRP-Z4
FSP-B10	External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of
FSP-B28	Trigger port for FSP,FSQ,FSU; for indication of trigger conditions
FSU-B12	Output attenuator for tracking generator for FSU, FSQ
FSU-B25	Electronic attenuator 0 to 30 dB, Preamplifier 20 dB, 10MHz - 3.6 GHz for FSU, FSQ
FSU-B4	OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR
FSU-B5	Output for low phase noise 640MHz reference signal for FSU3, FSU8, FSQ3 und FSQ8
FSU-B9	Tracking generator for FSU and FSQ, 100 kHz - 3.6 GHz
K100	EUTRA/LTE downlink, application firmware
K100	EUTRA/LTE downlink, application firmware
K101	EUTRA/LTE uplink, application firmware
K101	EUTRA/LTE uplink, application firmware
K102	EUTRA/LTE Downlink, MIMO. PC software for FSG and FSQ (FSQ-K100 required)
K102	EUTRA/LTE Downlink, MIMO. PC software for FSG and FSQ (FSQ-K100 require
K104	Analysis of EUTRA/LTE TDD downlink signals (for FSG, FSQ)
K105	Analysis of EUTRA/LTE TDD uplink signals (for FSG, FSQ)
K3	Noise Figure Measurement Software
K30	Application firmware for noise figure and gain measurements for FSMR, FSP, FSQ, FSU
K4	PHASE NOISE MEASUREMENT
K40	Application firmware for phase noise measurements for FSMR, FSP, FSQ, FSU
K5	Application firmware GSM/EDGE tests for FSP, FSU, FSQ
K7	FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU)
K70	Vector signal analysis for FSQ; 28 MHz demodulator-BW FSK, MSK, PSK,
K72	Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP, FSU, FSQ
K73	Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP, FSU, FSQ
K74	3GPP HSDPA base station test application firmware for FSMR, FSU, FSP, FSQ
K76	3GPP TD-SCDMA base station test; application firmware for FSMR, FSP, FSQ, FSU
K77	3GPP TD-SCDMA mobile station test; application firmware for FSMR, FSP, FSQ, FSU
K8	Application firmware for Bluetooth measurement on FSP, FSU and FSQ
K82	CDMA2000/1xEV-DV base station test application firmware for FSMR, FSP, FSU, FSQ
K83	CDMA2000/1xEV-DV mobile station application firmware for FSMR, FSP, FSQ, FSU
K84	1xEV-DO base station test application firmware for FSMR, FSU, FSP, FSQ
K85	1xEV-DO mobile station test application firmware for FSMR, FSP, FSQ, FSU
K9	Measurements with NRP power sensors NRP-Z11/Z21/Z22/Z23/Z24/Z51/Z55/Z91 requires NRP-Z3 or NRP-Z4
K90	Application firmware WLAN 802.11A TX tests (EMV, flatness, mask) for FSQ
K90U	Upgrade from FSQ-K90 to FSQ-K91, 802.11A,B,G,J TX tests requires 512 MB memory
K91	Application firmware WLAN 802.11A,B,G,J TX tests requires 512 MB memory
K91N	Upgrade of FSQ-K91 to 802.11n
K92	Application firmware WIMAX (802.16-2004) TX measurements
K92U	Upgrade of FSQ-K92 to FSQ-K93
K93	Application firmware for WIMAX IEEE 802.16e, WIBRO
K94	Application firmware for WIMAX IEEE 802.16e-2005 MIMO
K96	Generic OFDM measurement demodulator. Selectable pilot and data carriers and modulation type
Q3-DKD	ISO 9000 Calibration / data
R3	REPAIR SERVICE 3 YEARS
R5	Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
U100	I/Q memory extension 235 Msamples, extandable up to 705 Msamples (for retrofitting)
U2	Upgrade kit to Win XP and 512 MB CPU RAM
U3	CPU board upgrade and 1.5GB memory extension for FSQ with flash drive FSQ-B18
Z2	Compact Keyboard with Trackball
Z4	DC Block 10 KHz - 18 GHz N Connector 50 Ohm, 50 VDC
Z5	2.4 mm Test Port Adapter
ZZA-411	19" adapter, 4 HU, 1/1 for BW2000 cabinets
