Three-Path Diode Power Sensors

Model:NRP-Z22

Manufactured by: Rohde and Schwarz

Category:RF Power Measurement

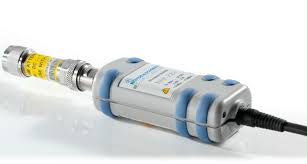

Rohde and Schwarz NRP-Z22 Overview

The R&S®NRP-Z22 universal power sensor is, with a dynamic range of 90 dB for measurement of CW and modulated signals and a maximum power of +33 dBm, a very useful measurement instrument for a vast number of measurement tasks.

  • True universal power sensor for a vast number of applications
  • 10 MHz to 18 GHz
  • 57 dBm to +33 dBm (2 nW to 2 W)
  • 90 dB dynamic range for CW and modulated signals
  • Innovative three-path diode power sensor with enhanced inter-range performance
  • Continuous average, burst average, timeslot average, time gating and trace mode supported (video bandwidth 100 kHz)
  • Automatic burst detection and acquisition
  • Up to 1500 measurements/s (buffered mode)
  • Low sensitivity to harmonics
