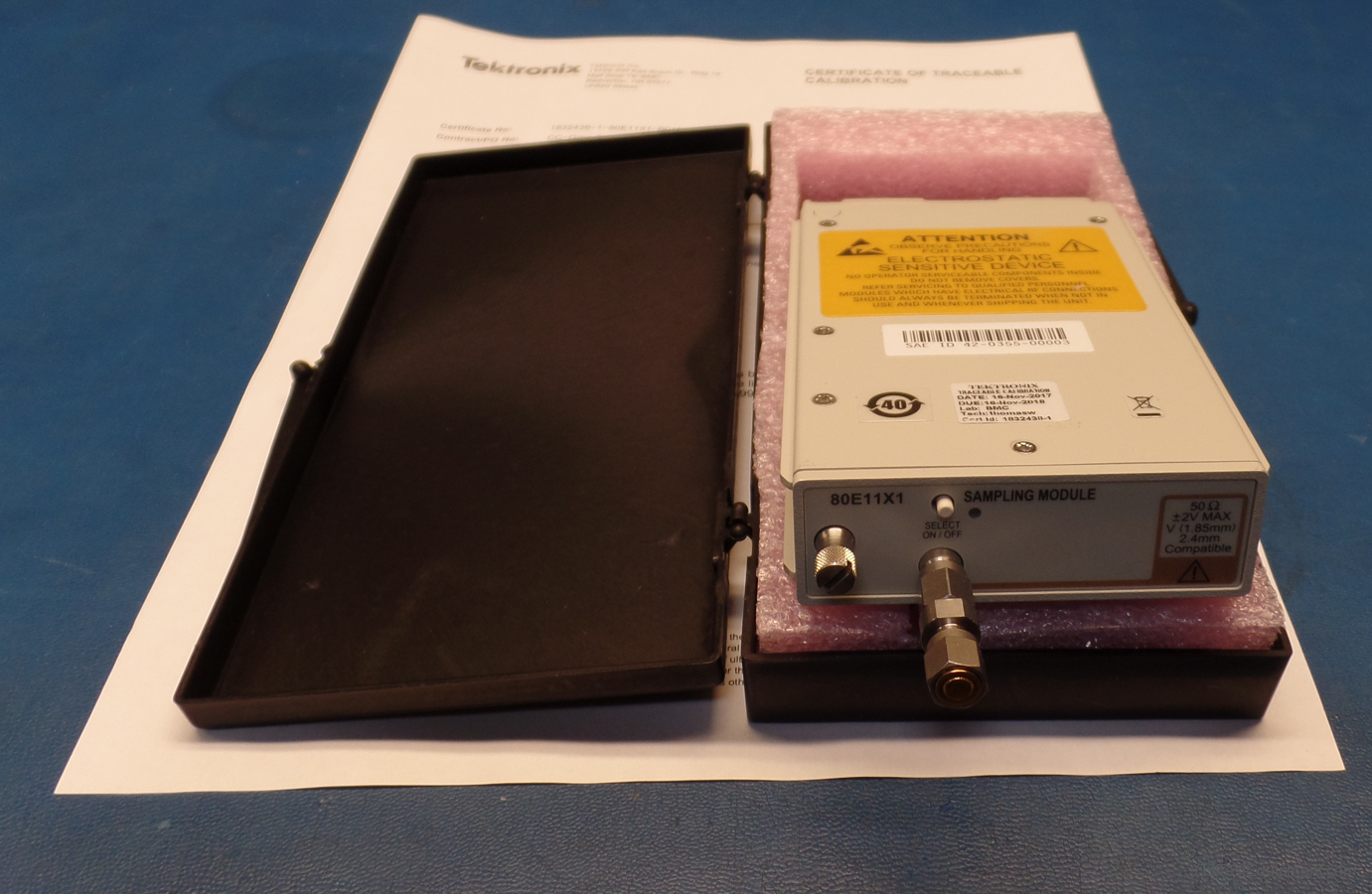

80E11X1 Single Channel 70 GHz Ultra-low Jitter Electrical Sampling Module
Tektronix 80E11X1 Overview
The 80E11X1 single channel, 70+ GHz bandwidth
sampling module. It provides the widest measurement
bandwidth and fastest rise time measurements with world class signal
fidelity. User-selectable bandwidth settings (70/60/40 GHz) enable optimal
noise/bandwidth trade-off. The 80E11X1 module can be used with the optional
2-meter extender cable, which ensures superior signal fidelity and
measurement flexibility.
- Application Type: High-frequency, low-noise,
signal acquisition and jitter
- Channels: 1
- Input Impedance: 50 ±1.0 OHM
- Channel Input
Connector: 1.85 mm female, precision
adapter to 2.92 mm
included with 50 ? SMA
termination
- Bandwidth: 70/60/40 GHz*
Tektronix 80E11X1 All Available Options
C3 |
CALIBRATION SERVICE 3 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 2 |
C5 |
CALIBRATION SERVICE 5 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 4 |
D3 |
CALIBRATION DATA REPORT 3 YEARS (WITH OPTION C3) |
D5 |
CALIBRATION DATA REPORT 5 YEARS (WITH OPTION C5) |
G3 |
Three Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, priority access to Customer Support among others |
G5 |
Five Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, priority access to Customer Support among others |
R3 |
REPAIR SERVICE 3 YEARS (INCLUDING WARRANTY PERIOD) |
R3DW |
REPAIR SERVICE COVERAGE 3 YEARS (INCLUDES PRODUCT WARRANTY PERIOD) 3 YEAR PERIOD STARTS AT TIME OF CUSTOMER INSTRUMENT PURCHASE |
R5 |
REPAIR SERVICE 5 YEARS (INCLUDING WARRANTY PERIOD) |
R5DW |
REPAIR SERVICE COVERAGE 5 YEARS (INCLUDES PRODUCT WARRANTY PERIOD) 5 YEAR PERIOD STARTS AT TIME OF CUSTOMER INSTRUMENT PURCHASE |
