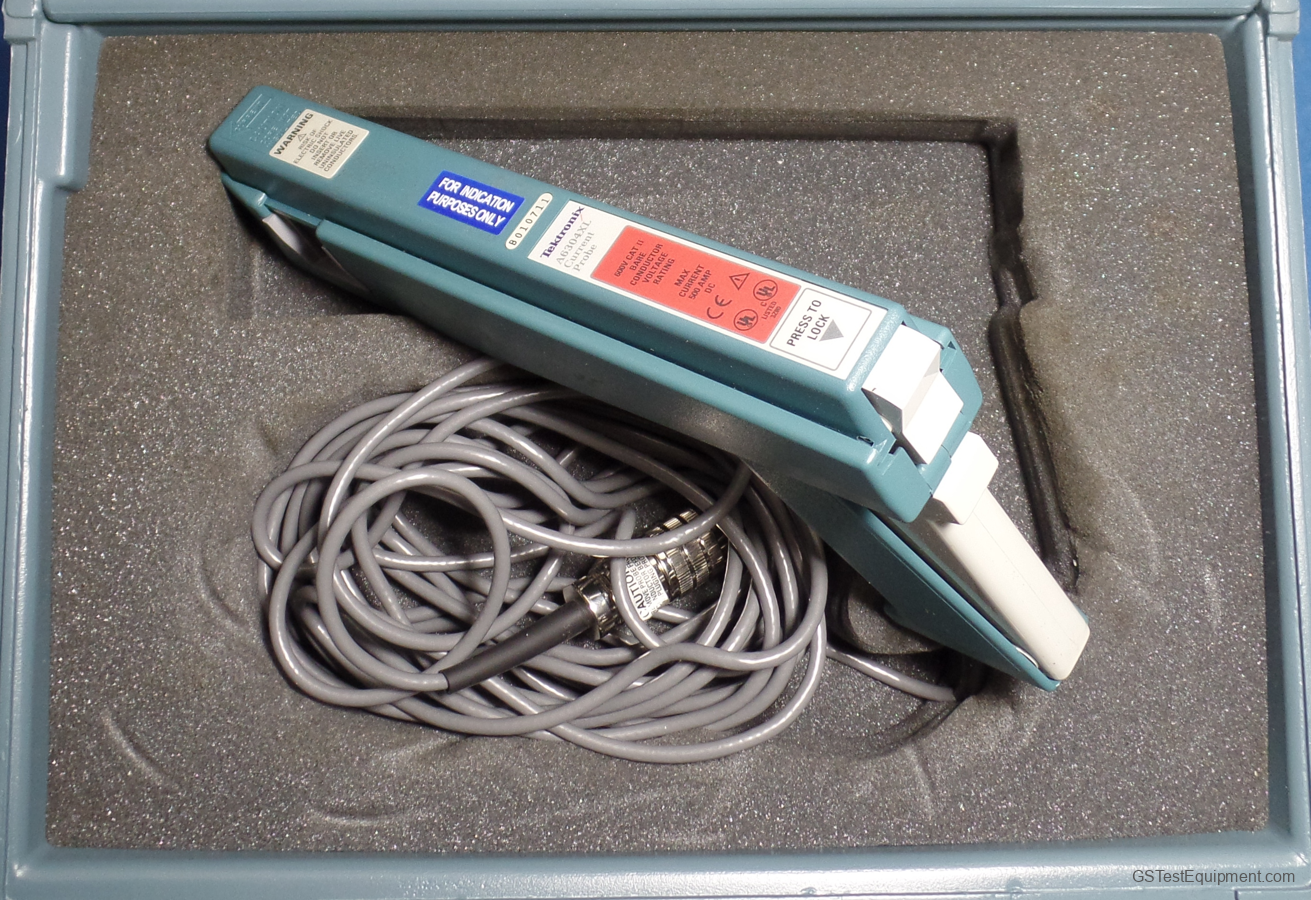

Tektronix A6304XL Overview
- Features:
- 8 Meter Cable
- 500 Amps Continuous/700 Amps Peak
- DC to 2 MHz
- Certified to probe standard UL3111-2-032, CSA1010.2.032, EN61010-2-032, IEC61010-032
- Applications:
- Motor Drives
- Satellite Systems
- Inverters
- Transportation Systems
- Power Supplies
- Avionics
The Tektronix XL current probes add both convenience and expanded current measurement capability. The Tek XL probes are designed to operate with the AM503B and AM5030 Current Probe Amplifiers.
The XL (for extra long) probes have eight-meter cables, which allow you to reach test points on large devices such as heavy duty motors or automobiles. In addition, connecting to test points on transportation platforms such as trains, ships or aircraft is much easier with the XL probes.
The Tektronix A6304XL is rated for 500 A continuous (700 A peak). The Tek A6304XL has a bandwidth of DC to 2 MHz and is especially well suited for
