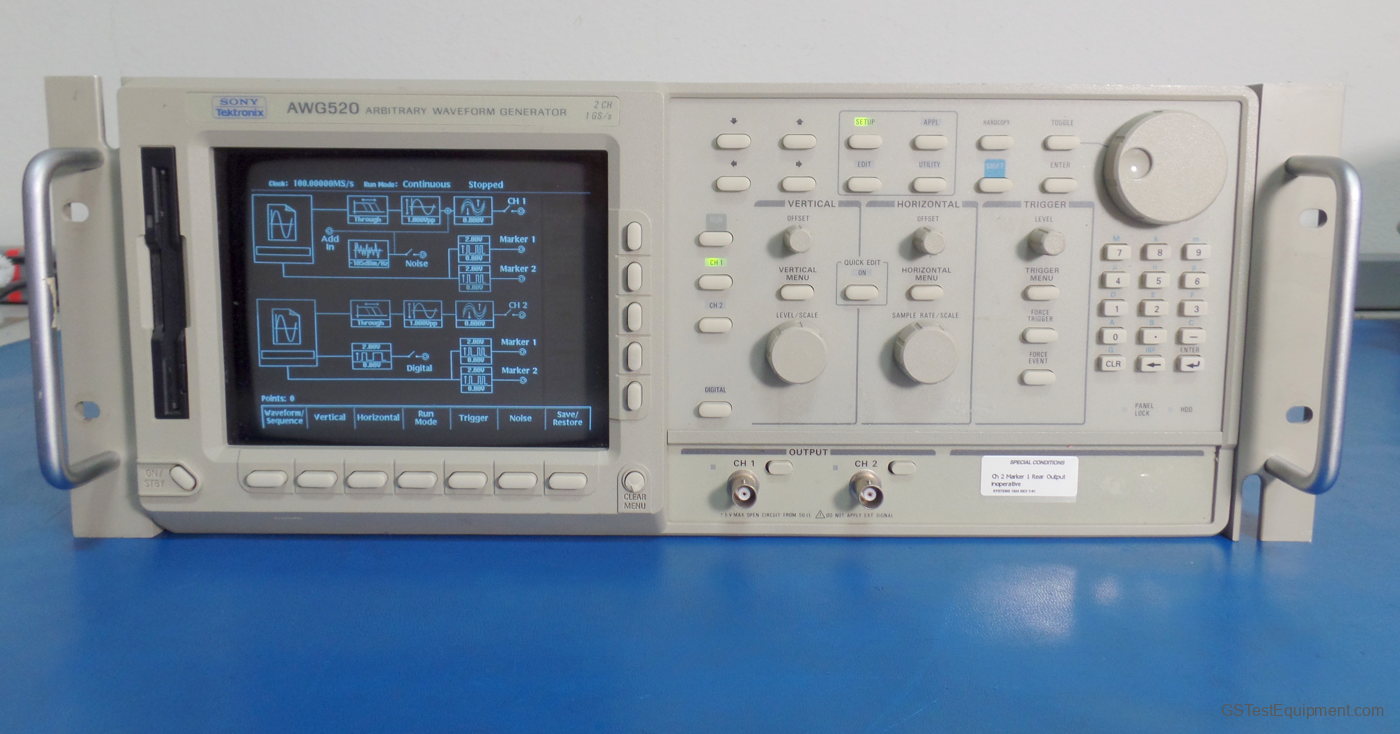

Tektronix AWG520 Overview
The Tektronix AWG520 is a 50 kHz to 1 GHZ Arbitrary Waveform Generator.
-
Measurements/Features
- Real-time Noise generation
- 10-bit vertical
- Programmable via GPIB
- File Transfers from GPIB
- graphical user interface
- WaveWriter Software support
- Flatness : 3 %
- Form Factor Benchtop
- Number of Channels 2 ch
- Waveforms (Sine, Square, etc.) Ramp,Sine,Square,Triangle
- Minimum Frequency 50 kHz
- Simultaneous Maximum Sampling Rate/ch 1 GSa/s
- Frequency Accuracy 0.001 %
- Maximum Output Voltage 2 V
- Waveform Resolution 8 digits
- Output Accuracy 0.25 %
- Output Impedance 50 Ohm
- Trigger Modes Continuous,Enhanced,Gate
- User Interface Windows/95
- Ports to Peripheral Devices GPIB
- Data Storage Type FDD,HDD
- CE Compliance Compliant
- UL Compliance Not compliant
- Input Power Universal (Auto Sense and Switch)
