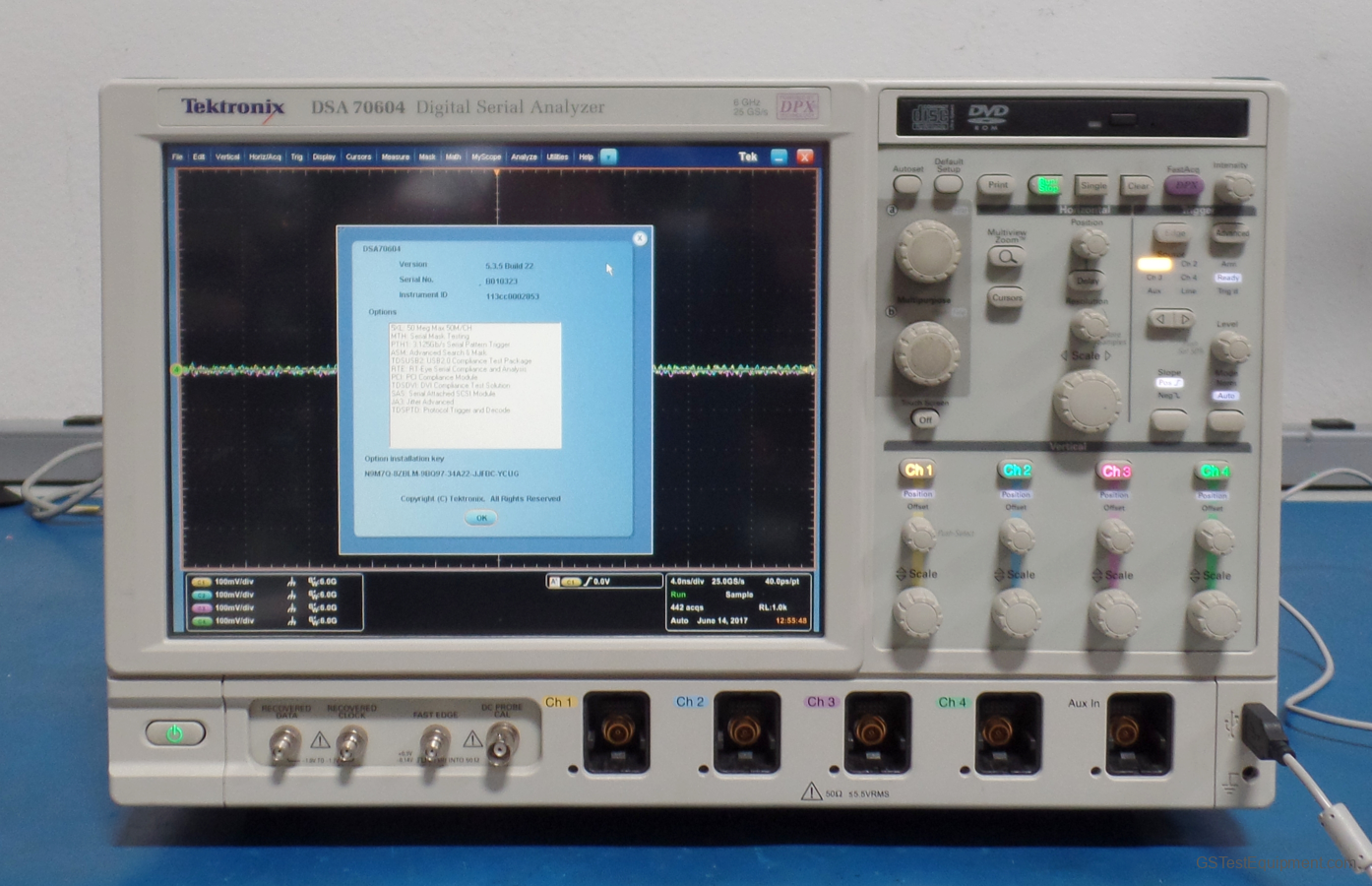

Tektronix DSA70604 Overview

The DPO70000 and the DSA70000 Series are the new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs. The specialized DSA70000 Series provides a complete and dedicated solution to address the challenges of high-speed serial designs.

The family features exceptional performance in signal acquisition and analysis, operational simplicity and unmatched debugging tools to accelerate your dayto- day tasks. The largest screen in the industry and the intuitive user interface provide easy access to the maximum amount of information.

Features:

• 8, 6, and 4 GHz Bandwidth Models
• 8, 6, and 4 GHz Digital Serial Analyzer Models with Dedicated Features for High Speed Serial Design and Compliance Testing
• Up to 25 GS/s Real-time Sample Rate on All Four Channels
• Up to 100 Megasamples Record Length with MultiView ZoomT Feature for Quick Navigation
• >250,000 wfms/s Maximum Waveform Capture Rate
• Pinpoint® Triggering Provides the Most Flexible and Highest Performance Triggering, with 1400 Other Combinations to Address Virtually Any Triggering Situation
• Serial Pattern Triggering up to 3.125 Gb/s with 8 b/10 b Protocol Triggering for Isolation of Pattern-dependent Effects
• PCI Express, Serial ATA, FB-DIMM, SAS, Fibre Channel, IEEE1394b, RapidIO, XAUI, HDMI, DVI, Ethernet, USB 2.0 Compliance Testing, Jitter and Timing Measurements, Power Measurements
• 12.1" Largest XGA Touch Screen Display in the Industry
• MyScope® Custom Windows Enhance Productivity
• Right Mouse Click Menus for Exceptional Efficiency
• Serial Data Compliance Testing, Decoding, and Protocol Triggering
• OpenChoice® Software with Microsoft Windows XP OS Enables Built-in Networking and Extended Analysis

Applications

• Signal Integrity, Jitter and Timing Analysis
• Verification, Debug and Characterization of Sophisticated Designs
• Debugging and Compliance Testing of Serial Data Streams for Telecom and Datacom Industry Standards
• Investigation of Transient Phenomena
• Power Measurements and Analysis
• Spectral Analysis

Tektronix DSA70604 Options

• 5XL: 50 MEG Max 50M/CH
• MTH: Serial Mask Testing
• PTH1: 3.125Gb/s Serial Pattern Trigger
• ASM: Advanced Search & Mark
• TDSUSB2: USB 2.0 Compliance Test Package
• RTE: RT- Eye Serial Compliance and Analysis

• PCI: PCI Compliance Module

• TDSDVI: DVI Compliance Test Solution

• SAS: Serial Attached SCSI Module

• JA3: Jitter Advanced

• TDSPTD: Protocol Trigger and Decode
