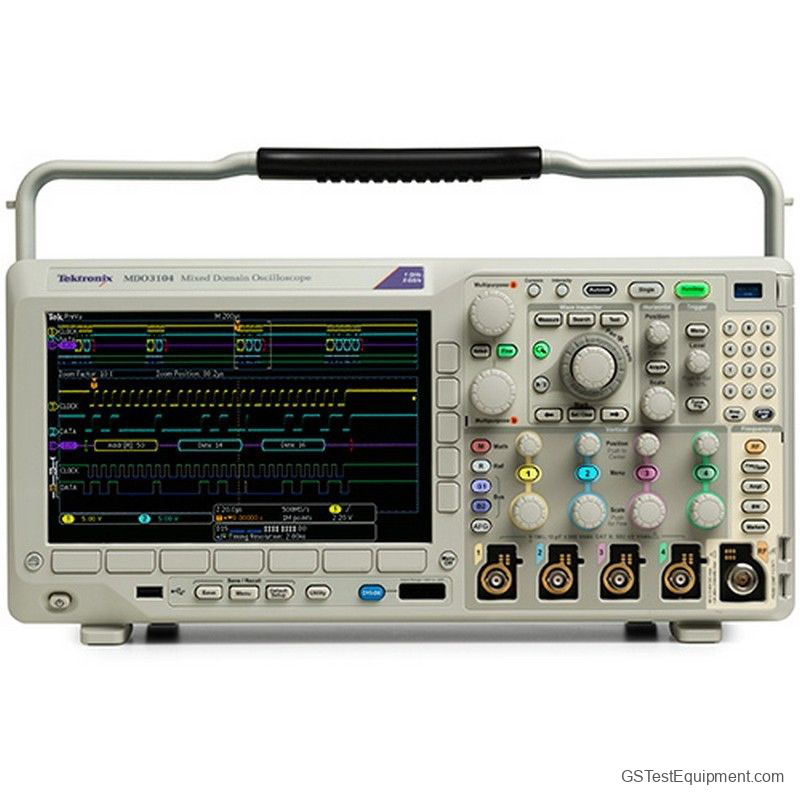

| A0 |
North America power plug (115 V, 60 Hz) |
| A1 |
Universal Euro power plug (220 V, 50 Hz) |
| L0 |
English front panel label |
| L1 |
French front panel overlay |
| L10 |
Russian front panel overlay |
| L2 |
Italian front panel overlay |
| L3 |
German front panel overlay |
| L4 |
Spanish front panel overlay |
| L5 |
Japanese front panel overlay |
| L6 |
Portuguese front panel overlay |
| L7 |
Simplified Chinese front panel overlay |
| L8 |
Traditional Chinese front panel overlay |
| L9 |
Korean front panel overlay |
| L99 |
No manual, English front panel label |
| MDO3AERO |
Aerospace Serial Triggering and Analysis Module. Enables triggering on packet-level information on MIL-STD-1553 buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time- stamp information. Signal Inputs - Any Ch1 - Ch4, Math, Ref1 - Ref4 Recommended Probing - Differential or single ended (only one single-ended signal required) |
| MDO3AFG |
Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation |
| MDO3AUDIO |
Audio Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2S, LJ, RJ, and TDM audio buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time-stamp information. Signal Inputs - Any Ch1 - Ch4, any D0 - D15 Recommended Probing - Single ended |
| MDO3AUTO |
Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN and LIN buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time- stamp information. Signal Inputs – CAN or LIN: Any Ch1 - Ch4, any D0 - D15 Recommended Probing - CAN: Single ended or differential; LIN: Single ended |
| MDO3BND |
Application module that enables all of the functionality of the MDO3AERO, MDO3AUDIO, MDO3AUTO, MDO3COMP, MDO3EMBD, MDO3FLEX, MDO3LMT, MDO3PWR and MDO3USB application modules in a single module. |
| MDO3COMP |
Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time-stamp information. Signal Inputs - Any Ch1 - Ch4, any D0 - D15 Recommended Probing - RS-232/UART: Single ended; RS-422/485: Differential |
| MDO3EMBD |
Embedded Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time- stamp information. Signal Inputs - I2C or SPI: Any Ch1 - Ch4, any D0 - D15 Recommended Probing - Single ended |
| MDO3FLEX |
FlexRay Serial Triggering and Analysis Module. Enables triggering on packet-level information on FlexRay buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, packet decode tables with time-stamp information. Signal Inputs - Any Ch1 - Ch4 (and any D0 - D15 when MDO3MSO option is installed; single-ended probing only) Recommended Probing - Single ended or differential |
| MDO3LMT |
Limit and Mask Testing Application Module. Enables testing against limit templates generated from "golden" waveforms and mask testing using custom masks. |
| MDO3MSO |
Add 16 digital channels; includes P6316 digital probe and accessories . |
| MDO3PWR |
Power Analysis Application Module. Enables quick and accurate analysis of power quality, switching loss, harmonics, safe operating area (SOA), modulation, ripple, and slew rate (dI/dt, dV/dt). |
| MDO3SA |
Increase spectrum analyzer input frequency range to 9 kHz – 3 GHz and capture bandwidth to 3 GHz. |
| MDO3SEC |
Add enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality. |
| MDO3USB |
USB Serial Triggering and Analysis Module. Enables triggering on packet-level content for low-speed, and full-speed USB serial buses. Also enables analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time-stamp information for low-speed, full-speed, and high-speed USB serial buses. Signal Inputs - Low-speed and Full-speed: Any Ch1 - Ch4, any D0 - D15; Low-speed, Full-speed, and High-speed: Any Ch1 - Ch4, Math, Ref1 - Ref4 |
