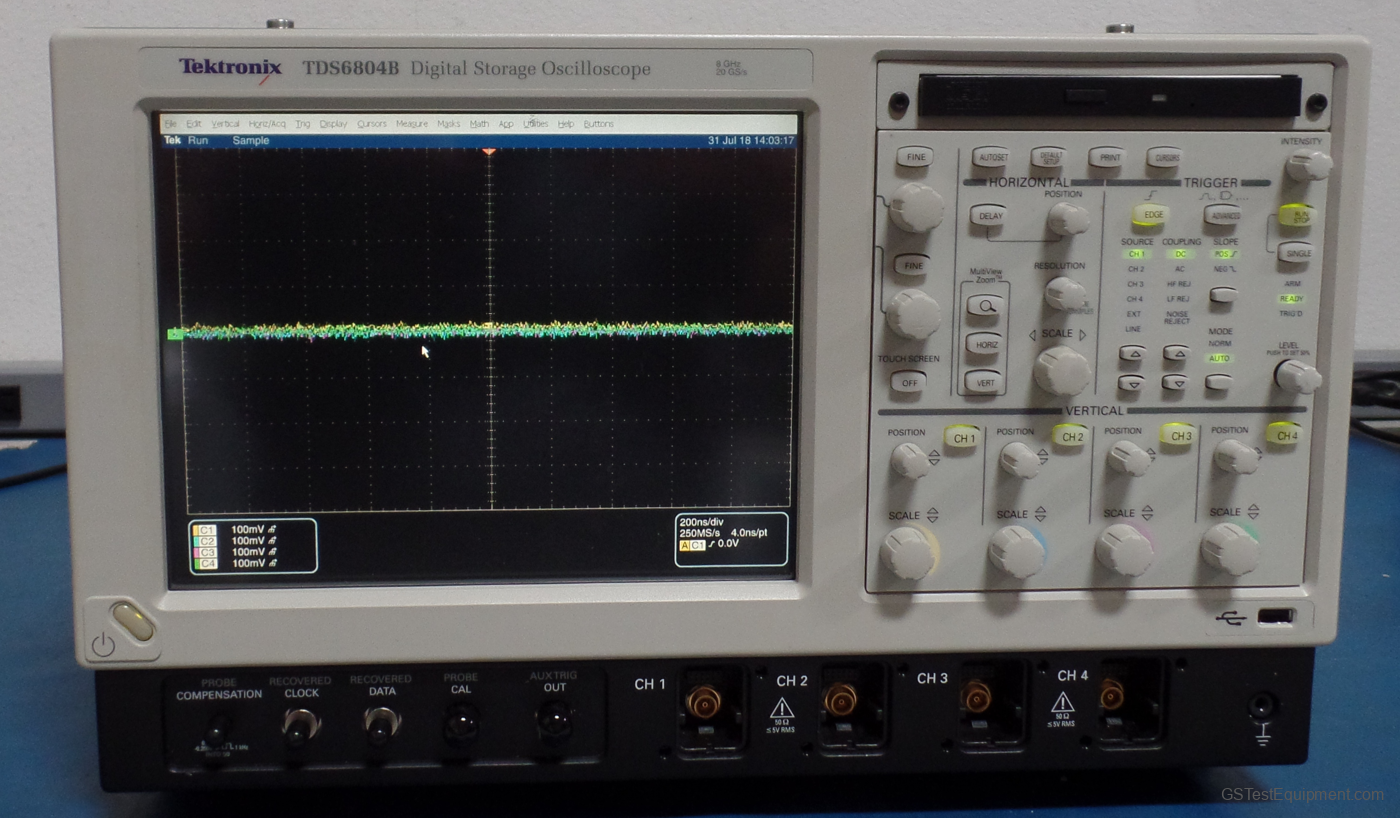

Tektronix TDS6804B Overview

The TDS6000B Series digital storage oscilloscopes provide performance along with a complete feature set designed to address design validation, debug, and compliance challenges of next generation computer, datacom, and communications equipment. High bandwidth, high sample rate, and deep memory also provide a solution for data acquisition applications. The TDS6000B Series DSO provides a new acquisition architecture that has maximum sample rate (20 GS/s) and record length (32 Megasamples) on each of the four channels simultaneously. The TDS6804B provides matched 8 GHz performance across all four channels using advanced DSP enhancement, important for high speed channel-to-channel measurements. The DSP filter on each channel provides magnitude and phase compensation of the analog bandwidth to provide more accurate signal fidelity for high speed measurements. Ideal for analyzing and debugging multi-lane serial device designs and interconnect. Four lanes of serial data traffic can be analyzed simultaneously. The DSP filter on each channel can also be disabled to take advantage of the true 7 GHz analog bandwidth.

Features:

• 4 Channel
• 8GHz Bandwidth (DSP-Enhanced), 7GHz Real-time Bandwidth
• 20GS/s Sample Rate in 4 Ch Mode
• Standard Memory: 2Mpts/ch in 4 Ch Mode
• OpenChoice(R) software with Windows XP OS delivers built-in networking and analysis
• High resolution XGA display
• Front Panel CD-R/W
• Front Panel USB2.0 port
• 1000BaseT network connection
