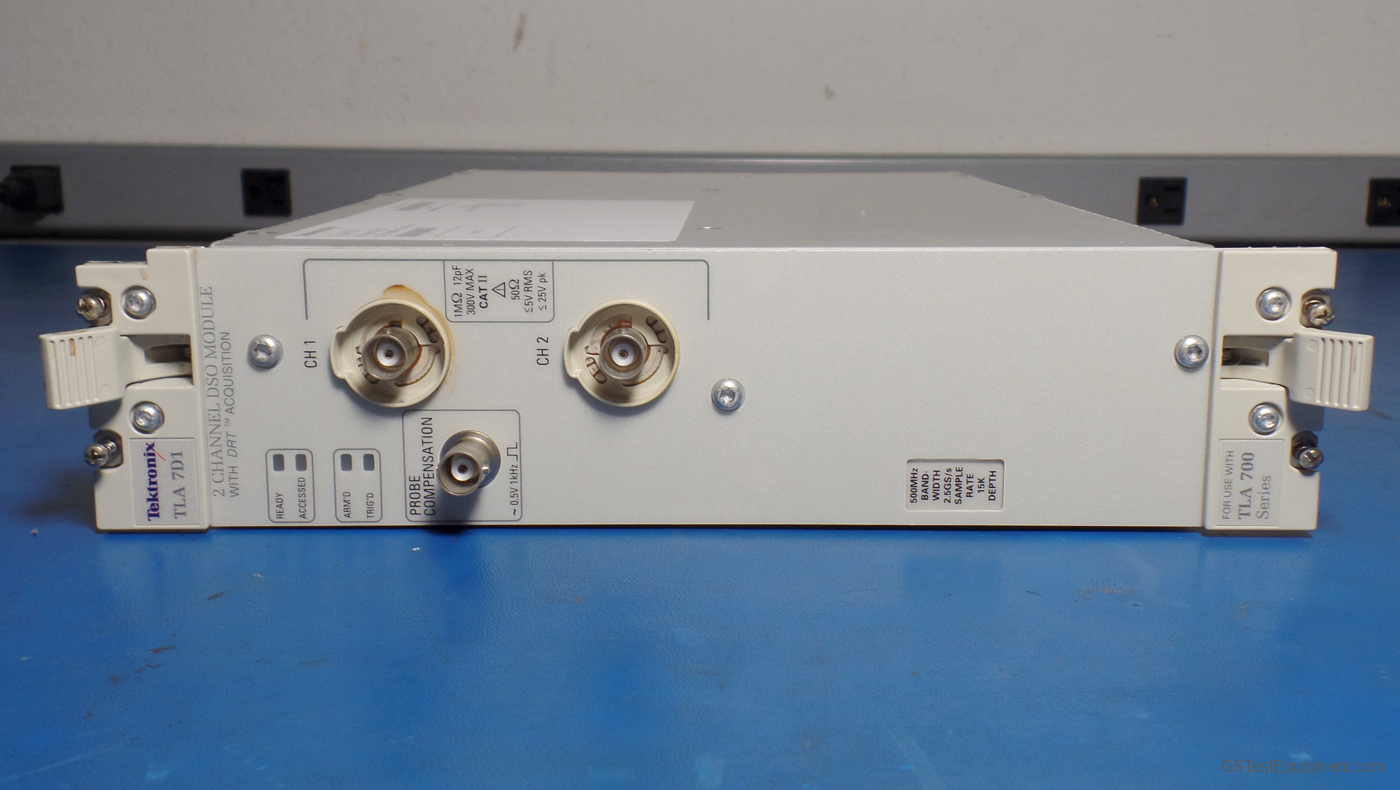

Tektronix TLA7D1 Overview

The TLA700 Series offers a range of digitizing oscilloscope modules that provide the acquisition capabilities of the world's best digitizing oscilloscopes, tightly integrated with the TLA700 logic analyzers. The 2 and 4 channel digitizing oscilloscope modules available in the TLA700 Series offer sample rates of up to 5 GS/s and bandwidths of up to 1 GHz, with 15 Kb memory depth per channel at all times.

The digitizing oscilloscope modules offer precise time correlation and flexible cross-triggering with other installed modules. This enables you to see the quality of critical signals time-correlated with the digital signals represented by the logic analyzer modules.

These modules offer the triggering you expect from a Tektronix digital oscilloscope: Pulse Width, Runt, Glitch, Slew Rate, Logic Pattern, Setup-and-Hold Violation, Edge and Timeout.

Features:

• 2/4 Channel Digitizing Oscilloscope Modules with 15 Kb Memory Depth
• Up to 1 GHz Bandwidth Provides High-fidelity Signal Quality Measurements of Digital Signals
• Up to 5 GS/s Sample Rate Provides High Resolution Analog Views of Digital Signals
• Advanced Digital Oscilloscope Triggering Helps Find Elusive Analog Anomalies in Digital Signals
